What is SFT (Super Fine TFT Technology)?
SFT is a technology from NLT, enabling a wide viewing angle without
significant change of brightness or colour. Viewing angles of typically
88 degrees in any direction can be achieved.

The technology behind SFT:
In many LCD panels the electric field (the “switching voltage”) is applied
to the cells in a direction perpendicular to the surface of the panel.
The liquid crystals are aligning in the same direction. Brightness and
colour are changing with viewing angle.

In SFT panels the electric field is applied parallel to the surface.
The liquid crystal molecules align parallel as well. There is no
dependency of brightness or colour from viewing angle.

Advantages from SFT:
Large viewing angle without significant change in brightness or colour.
Stable gray scales over viewing angle.

What is EVT* ?
EVT is a technology from NLT, enabling high readability of the display even in bright sunlight.

The technologies behind EVT:
Reflective EVT (R-EVT)   Bright light environment:
• Ambient light serves as the light source
• The backlight is off   Weak light environment:
• The backlight is on and serves as the light source   An LCD based on R-EVT is an ideal device for battery operated
applications, ether indoors or outdoors.

Transmissive EVT (T-EVT)   Sunlight environment:
• The anti-reflection coating leads to a significant reduction
  of reflections
• A high brightness backlight is used   Weak light environment:
• The backlight is on and serves as the light source   An LCD based on T-EVT is ideal for usage under bright
sunlight conditions

Advantages from EVT:
Excellent outdoor readability, even under bright sunlight,
low power consumption (R-EVT).

What is PCAP (Projected capacitive touch)?
Projected capacitive touch technology today is the most commonly used
human machine interface for consumer goods like Smartphones and
Tablets. This technology meanwhile is applied to Industrial, Medical and
POS devices like machine control and kiosk applications.

What does the panel include?
• LCD and PCAP as one assembled device from a single source
• Incl. cover glass, standard types as well as possible customisation
• Touch panel controller
NLT provides the real “One-Stop-Shop” solution for LCD and PCAP

The PCAP controller from NLT supports:
• X86 and ARM CPUs
• USB and I2C interfaces
• Actual Windows and Linux operating systems
• Easy to handle Tuning software in case settings have to be
  adopted on-site
Optimized controller settings enable swift and smooth touch
experience, supporting gloves and water tolerance for example.

Which panel sizes are available?
Sensors are available for all actual NLT LCD sizes ranging
from 6.5” to 19”.

Advantages from PCAP:
LCD and PCAP touch functionality as one device
Design, production and assembly at one supplier:
NLT Technologies Standard products available,
customization is possible

What is Adaptive Design?
The design of the panel is adapted:
• To the needs from our customers
• To the design of previous generations from the same panel

Optimal panel design:
• Display format, e.g. wide format (16:9, 16:10)
• Narrow frame, lightweight, compact
• Low energy consumption
Adapted to various design constraints

Long LED lifetime:
• 100.000 hours at 25°C ambient temperature
• 70.000 hours at 80°C ambient temperature

Wide temperature range:
• Wide operating temperature range from -30°C to +80°C
Meets a range of outdoor applications, e.g. motorized vehicle interiors

Mounting and interface compatibility:
Reduces design costs when replacing existing products with
new generations or upgraded versions.

Advantages from Adaptive Design:
• A design fitting to various constraints
• Allows to use always newest display technology by keeping
  compatible with previous designs (backward compatible design)
• Long term support

What is ColorXcell?
ColorXcell from NLT is a technology which enables most vivid colouring on LCDs.

How it works?
ColorXcell is an image processing technology which compensates for the fading out of colours which is caused by the limited color gamut.

Advantages from ColorXcell:
High colour reproduction.

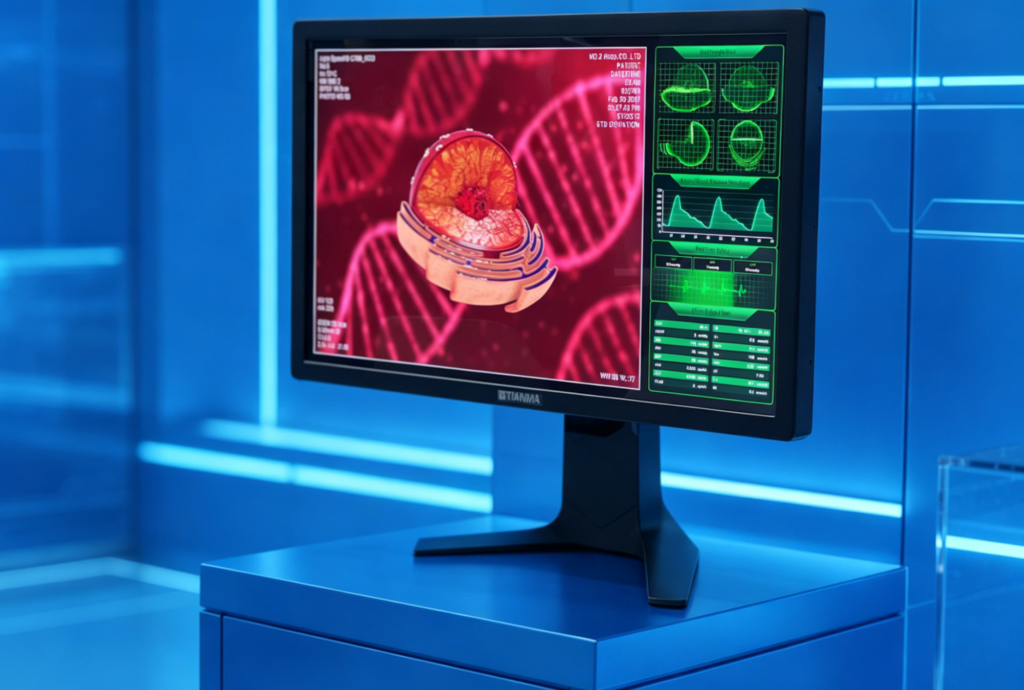

What is HxDP (Horizontally x-times Density Pixels)?
HxDP is the technology from NLT to show 3-dimensional images.

How it works:
Two pixels are required to create the 3D image (one pixel visible only
for the left eye, one pixel visible only for the right eye).
Those pixels are always next to each other.

If a conventional display is switching from 2D into 3D mode,
the resolution is shrinking to half.

In the HxDP display each RGB subpixel is smaller size and it is
rotated by 90 deg (here shown for x=2: Double pixel density,
half pixel size). As a result the resolution keeps unchanged
when the display is switching from 2D into 3D mode.

Advantages from Adaptive Design:
Auto-stereoscopic (no special glasses for viewing required).
Constant resolution in 2D and 3D mode.
2D and 3D images can be displayed simultaneousely
at the same screen.
