As industrial and medical systems become more complex, the demands placed on human–machine interfaces continue to grow. Our extended 6.5″ VGA display line-up is engineered to support reliable operation in environments where performance, visibility, and durability are critical.
Designed for long-term use, these displays are well suited for factory equipment and industrial HMI systems, as well as medical devices requiring stable and reliable visual performance. They are validated to withstand mechanical stress, vibration, and temperature fluctuations commonly encountered in industrial control environments, supporting consistent operation and clear readability over extended periods. Beyond industrial and medical use, the displays are also a strong fit for transportation infrastructure, including subway ticketing machines and rail-side systems, where continuous operation and dependable visual performance are essential.
Product Features
- Wide Viewing Angles (88/88/88/88): Ensure consistent image quality from multiple viewing positions – ideal for operators in vehicle cabins and medical staff working from different angles.
- High Brightness (up to 1100 cd/m²): Clear and legible visuals even in brightly lit factory floors, outdoor machinery cabins, or public transportation environments.
- Wide Operating Temperature Range (up to -30 °C to +80 °C): Reliable performance in extreme cold and heat, supporting year-round operation in harsh industrial conditions.
- UL Certified: Supporting safety and reliability requirements for professional industrial and medical applications.

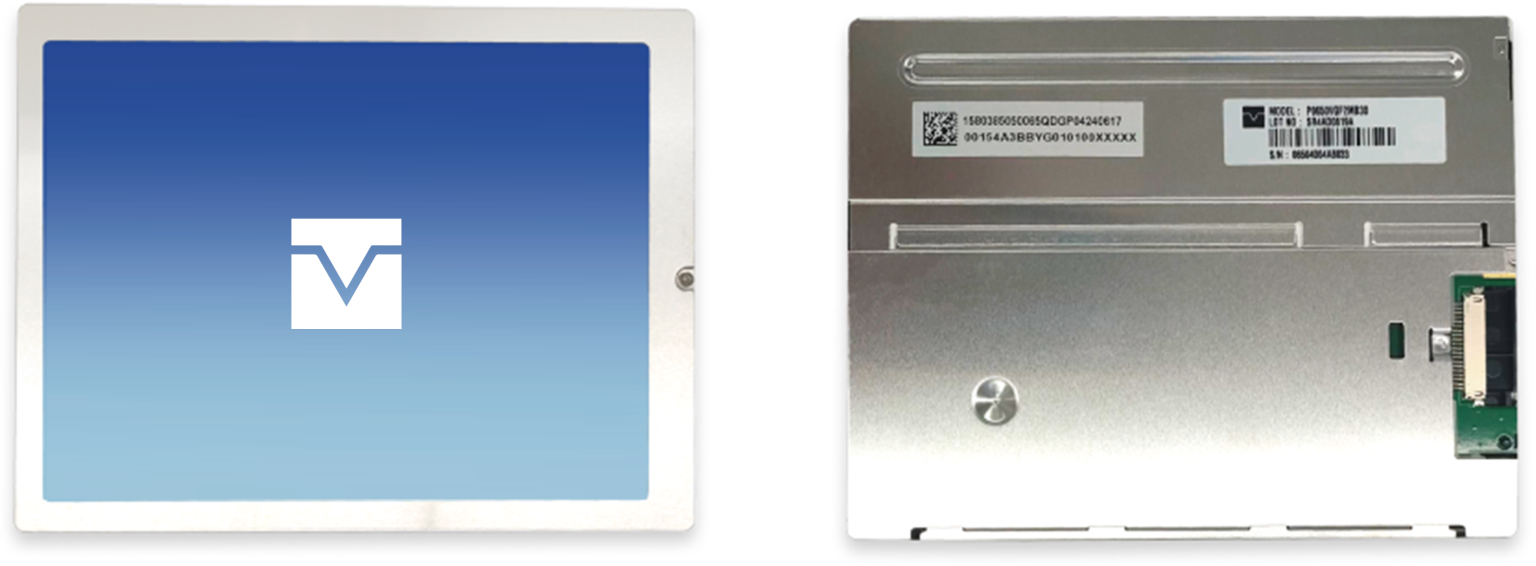

These 6.5″ a-Si TFT LCD modules are based on Normally Black technology. They each consist of a TFT LCD panel, a driver circuit, PCB, and an LED backlight.
| Class | Basic | Basic | Advanced | Advanced |
| Part No. | P0650VGF2MB30 | P0650VGF2MB31 | P0650VGF2MA20 | P0650VGF2MA30 |
| Size (inch) | 6.5" | 6.5" | 6.5" | 6.5" |
| Display Technology | SFT | SFT | SFT | SFT |
| Resolution (pixel) | 640×480 VGA | 640×480 VGA | 640×480 VGA | 640×480 VGA |
| LCM Outline (W×H×D) (mm) | 153×118×8.2 | 153×118×8.2 | 153×118×9 | 153×118×8.2 |
| Brightness (cd/m2) | 650 | 650 | 900 | 1,000 |
| LED Lifetime (h) | min. 70,000 | min. 70,000 | min. 40,000 | min. 70,000 |
| LED Driver | Not Included | Not Included | Not Included | Not Included |
| Operating Temp. (°C) | -30°C to +80°C | -30°C to +80°C | -20°C to +70°C | -30°C to +80°C |
| Interface | LVDS | RGB | LVDS | LVDS |
| Surface Treatment | AG | AG | AG | AG |
These proven 6.5″ VGA displays are designed to enhance the reliability, usability, and longevity of your equipment – whether deployed in factory automation, mobile machinery, medical systems, or transportation infrastructure.
Request samples and datasheets now.
Customization Options
Beyond standard products, Tianma Europe offers a broad range of customization options across its standard display portfolio. Depending on application requirements, exemplary adaptations include:
- Brightness and optical tuning
- Interface and PCB adjustments
- Mechanical customization
- Touch integration and cover lens solutions
This flexibility helps our customers adapt proven display platforms precisely to their system needs while maintaining long-term availability and quality consistency.
Get in touch
For product information, sample requests, or tailored solutions, our local team is ready to work closely with you to find the display that fits your needs best. → Contact us
