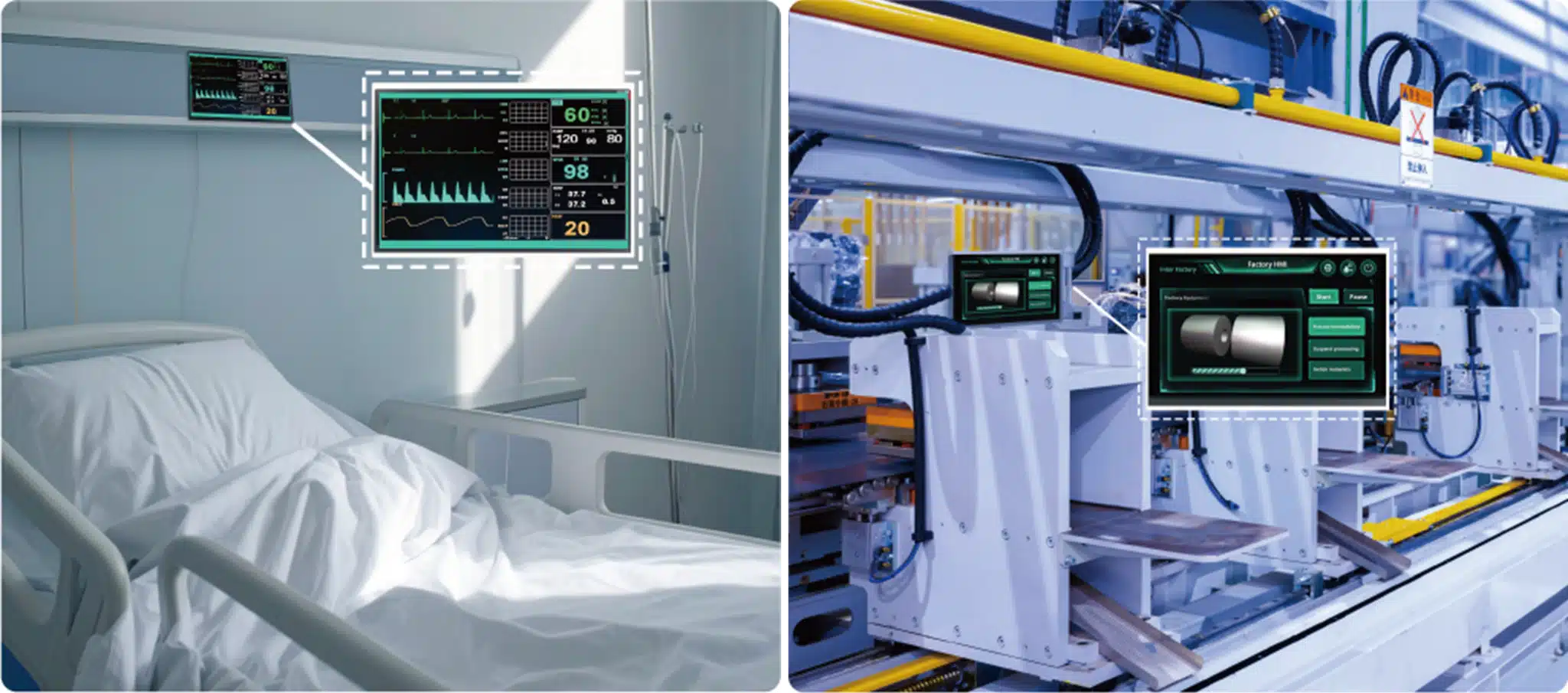

We are introducing the 10.1” WXGA display P1010WXF2ME30 – a cost-efficient yet reliable display module for industrial and medical applications. It’s a smart fit particularly for operator terminals and control panels, medical monitors, test & measurement devices, and power/energy interfaces.
The P-Series Entry-Class
Positioned as an Entry-class P-Series module, the P1010WXF2ME30 delivers essential P-Series quality and long-term availability at an attractive cost point and is optimized for standard indoor to moderately harsh operating conditions.
Product Features
- High Resolution (1280×800 WXGA): Providing high-definition image quality for crisp user interfaces and data visualizations.
- Wide Viewing Angle (89/89/89/89): Ensuring clear and consistent visuals from multiple angles.
- Color Gamut (72% NTSC): Offering a wider gamut for vivid and precise imagery, enabled by an optimized panel.
- Slim, narrow-border design (left/right/top <4 mm): Compact footprint for seamless integration into tight housings or multi-display setups.
- Wide Temperature Range (-20°C to +70°C): Delivering reliable and consistent performance across a broader spectrum of environmental conditions than earlier 10.1″ entry-class displays.
- Advanced Surface Treatment: Anti-glare (AG) coating reduces reflections and enhances readability, thereby improving user comfort and visual clarity in brighter environments.

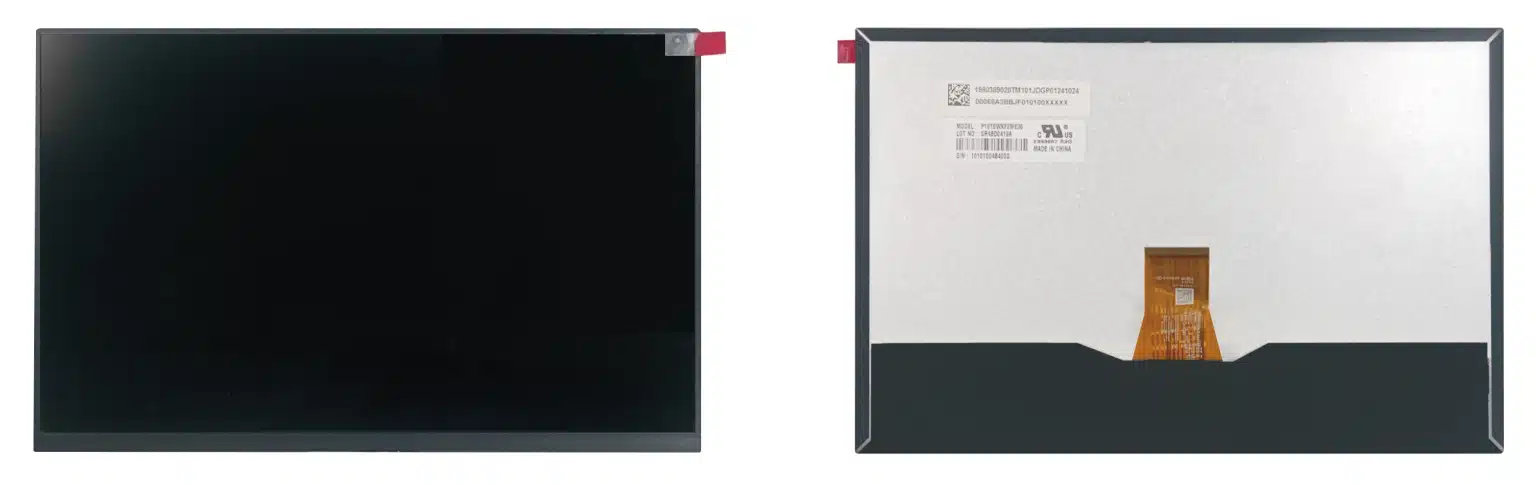

This is a 10.1-inch a-Si TFT-LCD module with Normally Black SFT technology. It is composed of a TFT-LCD panel, driver circuitry with FPC, and an LED backlight unit.
| Class | Entry |
| Part No. | P1010WXF2ME30 |
| Size (inch) | 10.1" |
| Display Technology | SFT |
| Resolution (pixel) | 1280×800 WXGA |
| Interface | LVDS |
| LCM Outline (W×H×D) (mm) | 224.8×147.92×3.0 |
| Brightness (cd/m2) | 400 |
| LED Lifetime (h) | 30,000 |
| Operating Temp. (°C) | -20°C to +70°C |
| LED Driver | Not Included |
| Surface Treatment | AG |
Request your evaluation sample now to benefit from the P1010WXF2ME30’s perfect blend of performance and reliability.
Datasheets are available and mass production is on track for November 2025, with UL certification targeted at production start.
