We are proud to introduce our ultra-wide 12.3″ Advanced-class display (P1230FHF1MA00) with
1920 × 720 resolution, delivering clear visuals and reliable operation for marine and industrial vehicle applications.

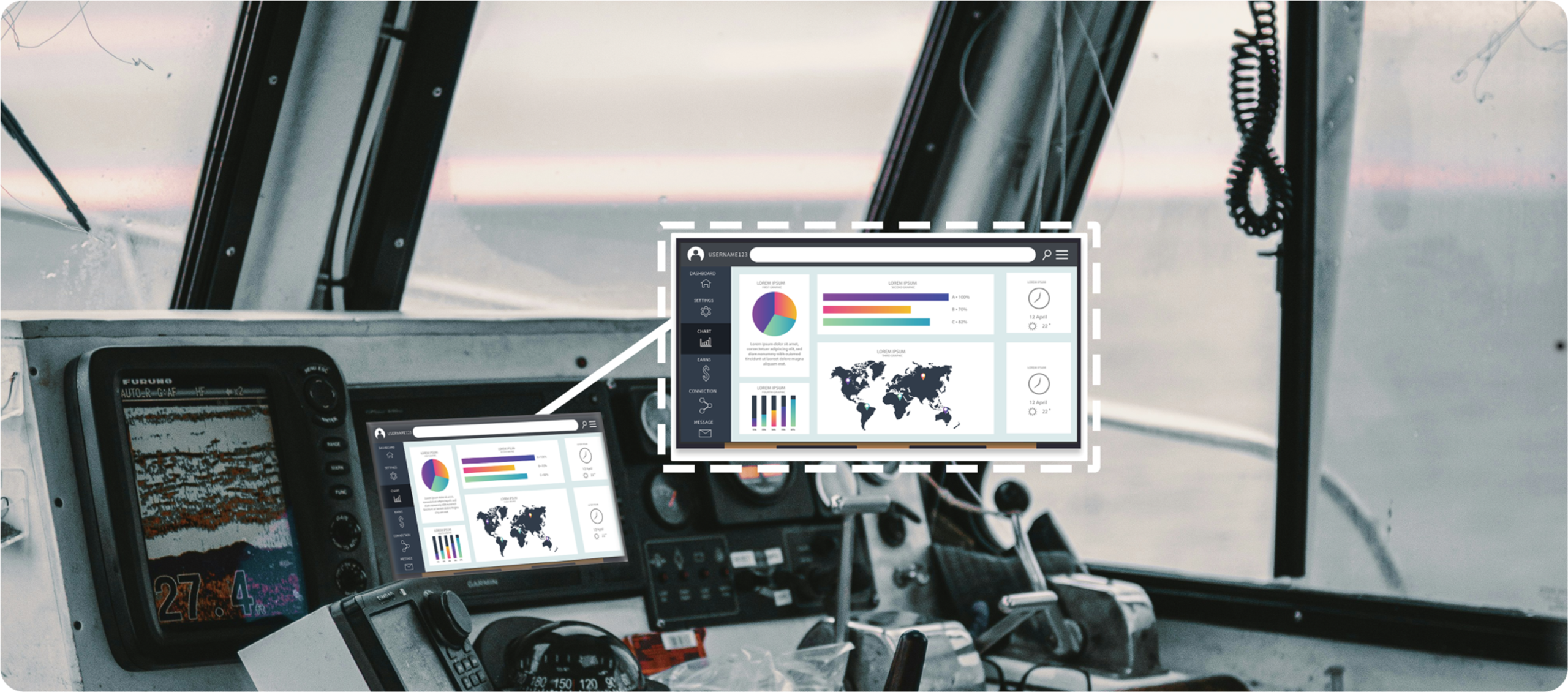

Designed for demanding environments, this display combines an ultra-wide format with outstanding brightness and an extended temperature range – ideal for cockpits, control panels, and monitoring systems.
Product Features
High Resolution: 1920 × 720 pixels ensure sharp, detailed visuals, perfectly suited for multi-information dashboards and advanced HMI concepts.
Wide Viewing Angles: 88°/88°/88°/88° viewing angles ensure consistent image quality and color stability from all directions – essential for shared viewing environments and operator consoles.
Sunlight Readable Performance: With 1400 cd/m² brightness, the display remains clearly readable even under direct sunlight or harsh ambient lighting conditions, supported by enhanced UV resistance.
Wide Temperature & Humidity Reliability: Validated for reliable operation from -30°C to +85°C and tested under high temperature and high humidity conditions, enabling use in extreme climates and demanding industrial conditions.
Advanced Interface: LVDS interface ensures robust signal transmission and seamless integration into industrial systems.

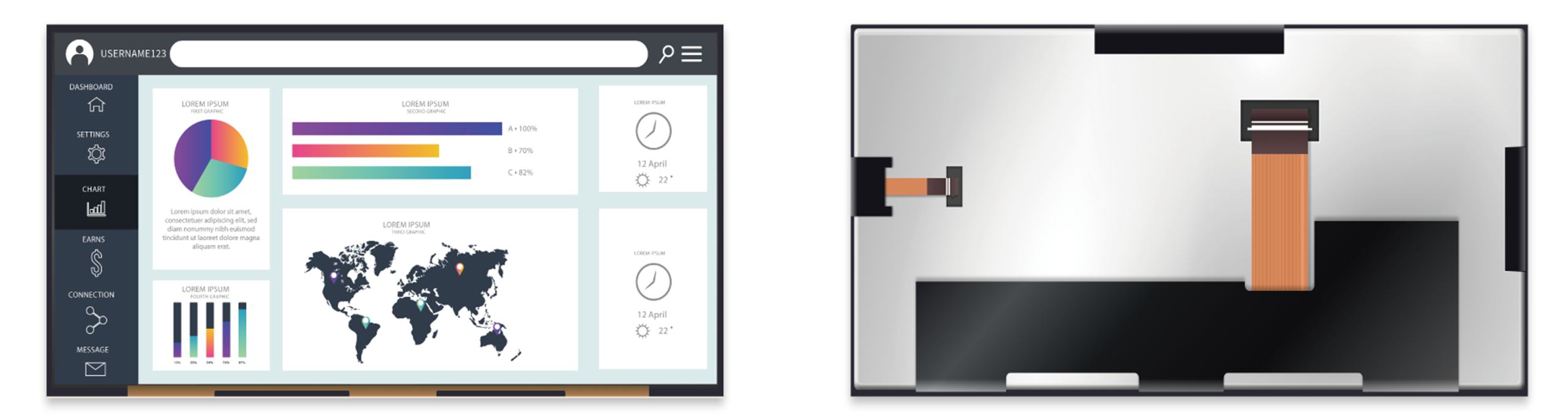

This is a 12.3-inch a-Si TFT-LCD module with Normally Black technology, consisting of a TFT-LCD panel, driver circuit with PCB, and an LED backlight unit.
| Class | Advanced |
| Part No. | P1230FHF1MA00 |
| Size (inch) | 12.3" |
| Display Technology | SFT |
| Resolution (pixel) | 1920 (RGB) × 720 |
| Active Area (mm) | 292.32 × 109.62 |
| LCM Outline (W×H×D) (mm) | 305.92 × 123.62 × 7.0 |
| Color Gamut (% NTSC) | 75 |
| Brightness (cd/m2) | 1,400 |
| LED Lifetime (h) | min. 30,000 |
| LED Driver | Not Included |
| Operating Temp. (°C) | -30°C to +85°C |
| Interface | LVDS |
| Surface Treatment | HC |
If you are looking for a sunlight-readable, ultra-wide display with proven performance in harsh environments, the P1230FHF1MA00 is well suited for marine and industrial vehicle applications.
Request your samples and datasheet now.
Customization
We offer customization options across our standard product portfolio, supporting customers in adapting display solutions to their specific application requirements. Typical examples include adjustments to optical performance and operating parameters, depending on project needs.
Get in touch
For product information, sample requests, or tailored solutions, our local team is ready to work closely with you to find the display that fits your needs best. → Contact us
