Tianma introduces a new 18.5” display with FHD resolution.

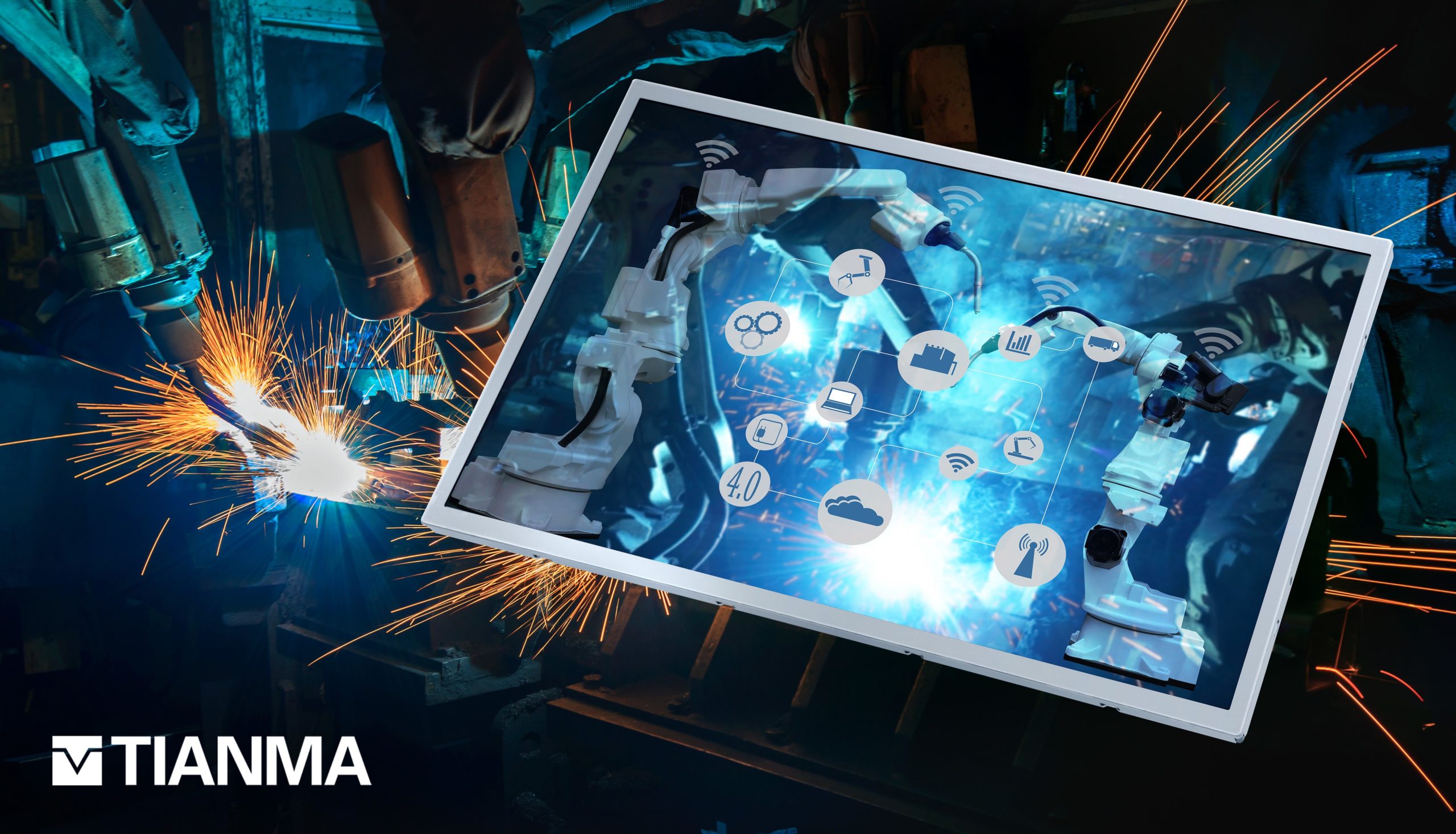

New 18.5” display with FHD resolution for indoor applications: P1850FHF1MB01
The new model from P-series belongs to Basic class. It offers FHD resolution (1920 x 1080) at a typical luminance of 400 cd/m². The colour gamut is 72% (NTSC colour space). The backlight lifetime is 50kh and the operating temperature range is from -20°C to +70°C.
Features:
· Size : 18.5”
· Resolution : FHD (1920 x 1080)
· Luminance : 400 cd/m² (typ.)
· Contrast ratio : 1000:1
· Colour gamut : 72% of NTSC colour space
· Technology : SFT (normally black)
· Backlight lifetime : 50 kh (typ.)
· Backlight driver : integrated
· Interface : LVDS 2 ports, 8 bits
· Operating temperature : -20°C … +70°C
Samples: Available
Other new displays from P-series in FHD resolution:
Resolution | Class | Size in inch | Luminance in cd/m² | Operating temperature in °C | Surface | Back-light life-time in kh | Back-light driver inte-grated | Inter-face | Part number
|
FHD | Advanced | 13.3 | 1000 | -20° … +70°C | HC | 50 kh | – | LVDS | P1330FH F1MA00 |
Basic | 18.5 | 400 | -20° … +70°C | AG | 50 kh | y | LVDS | P1850FH F1MB01 | |
Entry | 13.3 | 350 | -20° … +70°C | AG | 30 kh | y | eDP 1.2 | P1330FH F1ME10 |
