New round 4.17-inch and two 11.6-inch FHD displays for outdoor applications

We present the round 4.17-inch display and two new 11.6-inch displays in FHD resolution.

4.17-inch round and 11.6-inch FHD for outdoor applications

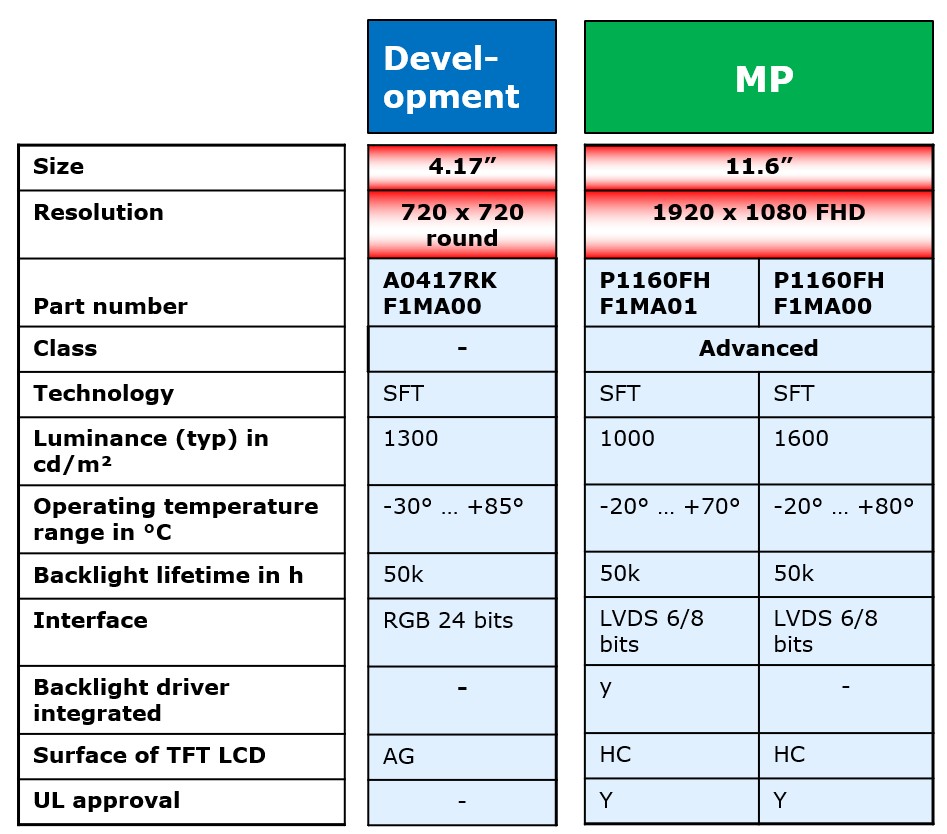

The 4.17-inch display is round and has a resolution of 720 x 720 pixel. It originates from the A-series for personal and commercial applications. With a typical luminance of 1300 cd/m² and an operating temperature range of -30°C to +85°C, it is ideal for outdoor applications.

The two 11.6-inch displays with FHD resolution (1920 x 1080) are part of the P-series for the industrial and medical display market.  Both displays are from the Advanced-class and offer a luminance of 1000 and 1600 cd/m² respectively. The display with 1000 cd/m² has an operating temperature range of -20°C to +70°C and has an integrated backlight driver, while the display with 1600 cd/m² has an operating temperature range of -20°C to +80°C and requires an external backlight driver.

A- and P-series:

A-series: AI & IOT: Artificial Intelligence & Internet of Things. Typical sizes from 1.4-inch to 5.5-inch. Focus on customised products.

P-series: Professional series. Typical sizes from 3.5-inch to 30-inch. Focus on standard products, with optional semi-customisations.

Samples can be ordered from Tianma Europe.
